Web Deposition WD1500: Rolled-Films Thin Films Deposition

Dealing with “large areas” has always been one of the challenges of thin films deposition. Our WD range systems (Web Deposition) are dedicated to the Plastics, Metallurgy, Textile Industries and other industries.

WD1500

Manufacturer of thin film deposition machines for rolled-films
Thin film coating machines for rolled films

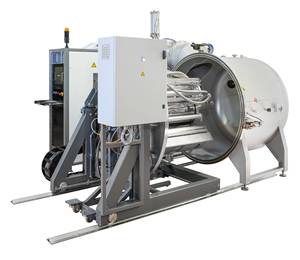

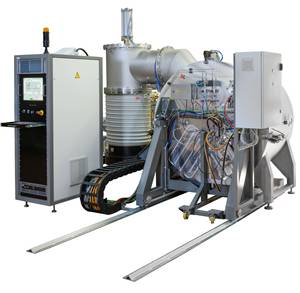

The WD1500 Thin Films Sputtering Machine is used to process plastic rolled films or textile rolled films of a few microns to several millimeters thick.

The design principle of this equipment is to receive both the transmitter coil and the receiver coil under vaccum.

The plastic film is then unrolled by taking into account its specificity so as not to deform the film during the unfolding/winding process and during the sputtering of thin films, this is an exothermic phenomenon.

This system can be equipped with either planar magnetron cathodes or rotatable target magnetron cathodes.

Technical features of the WD1500 rolled-films thin films sputtering machine

WD1500
Chamber Dimensions (mm)Ø1400
Usable Coating Surface (mm) *Laize de 600
Coating Surface Uniformity± 5%

*Usable Coating Surface given as an example
