Thin Films Deposition Machines for the Microelectronics Industry
The boom in new communications technology represents an opportunity for the PVD thin films deposition technologies. Mobile phones, smartphones, tablets, computers, hard drives, flash memories and other LCD screens are jewels of technology which all benefit from miniaturization.
As a result, thin films have been very successful for many years in numerous applications including:
- Thin films for microsystems
- Thin films for MEMS
- Thin films for semi-conductors
- Thin films for microelectronics
- Thin films for nanotechnologies
At present, the density of transistors per unit area quadruples every three years. For over 40 years, this speed race to miniaturization reaches its limits. Indeed, it is estimated that photolithography will reach its limits in the year 2020 with patterns of 10 to 15 nm. On this scale, quantum phenomena will disrupt the functioning of devices. Nanotechnologies are the future.

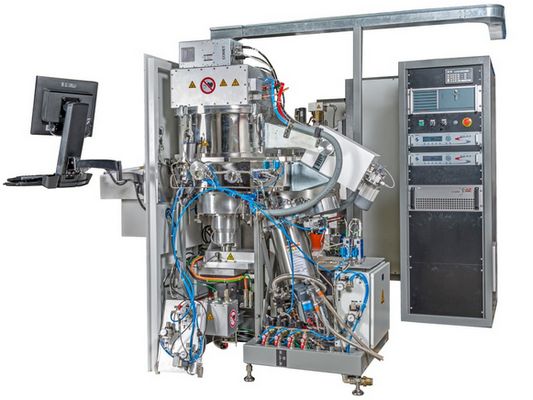

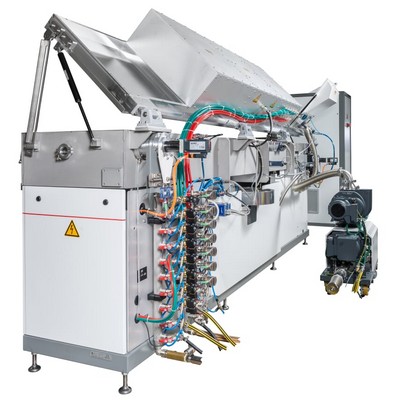

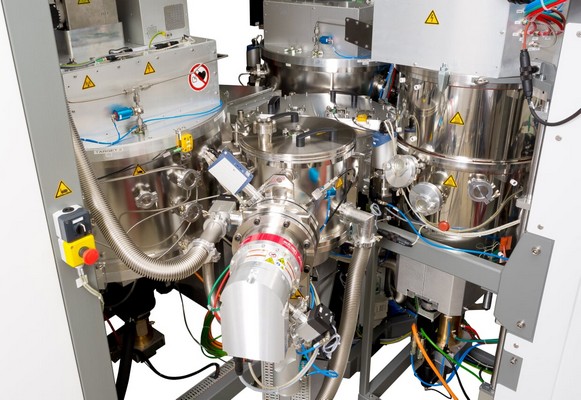

From 2’’ to 300 mm, by going through the wafer dimensions of 4”” and 200mm, Alliance Concept guarantees high quality systems to perform PVD thin films deposition by combining several technologies.
